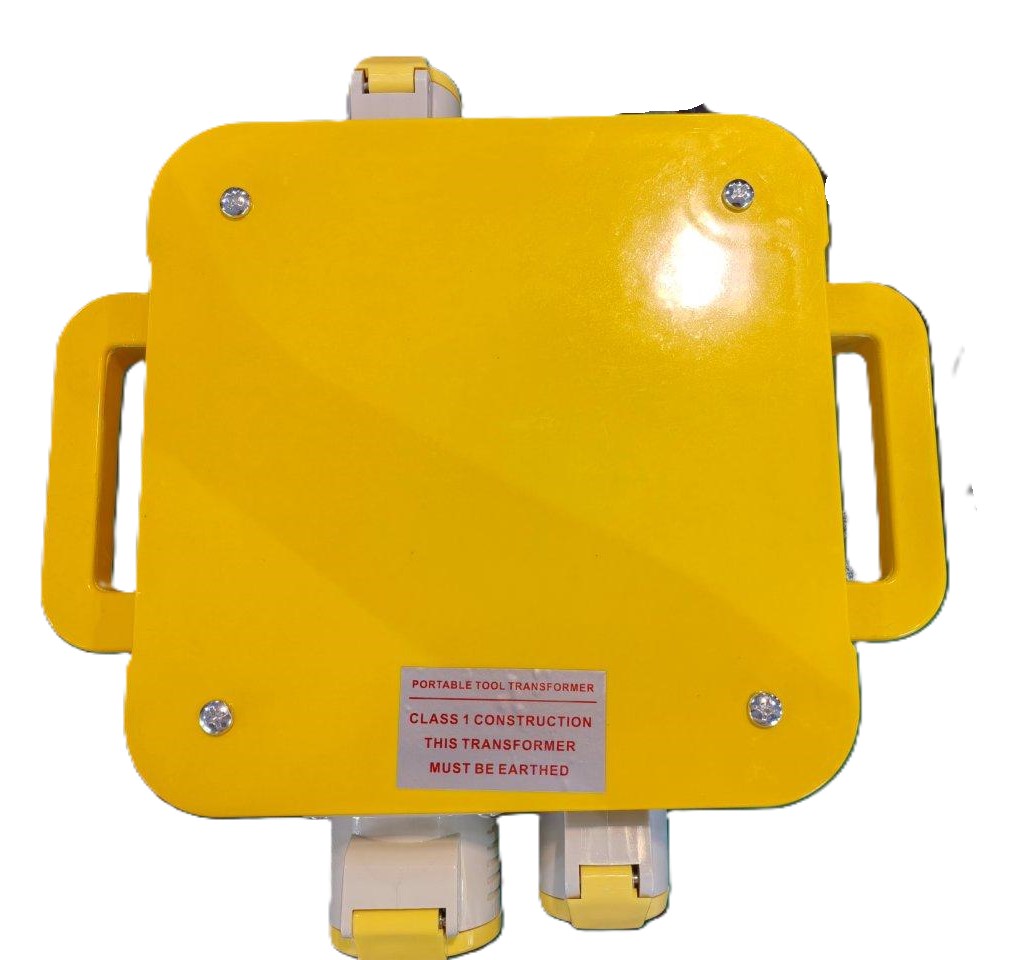

Portable Tool Transformer - CM5000/210

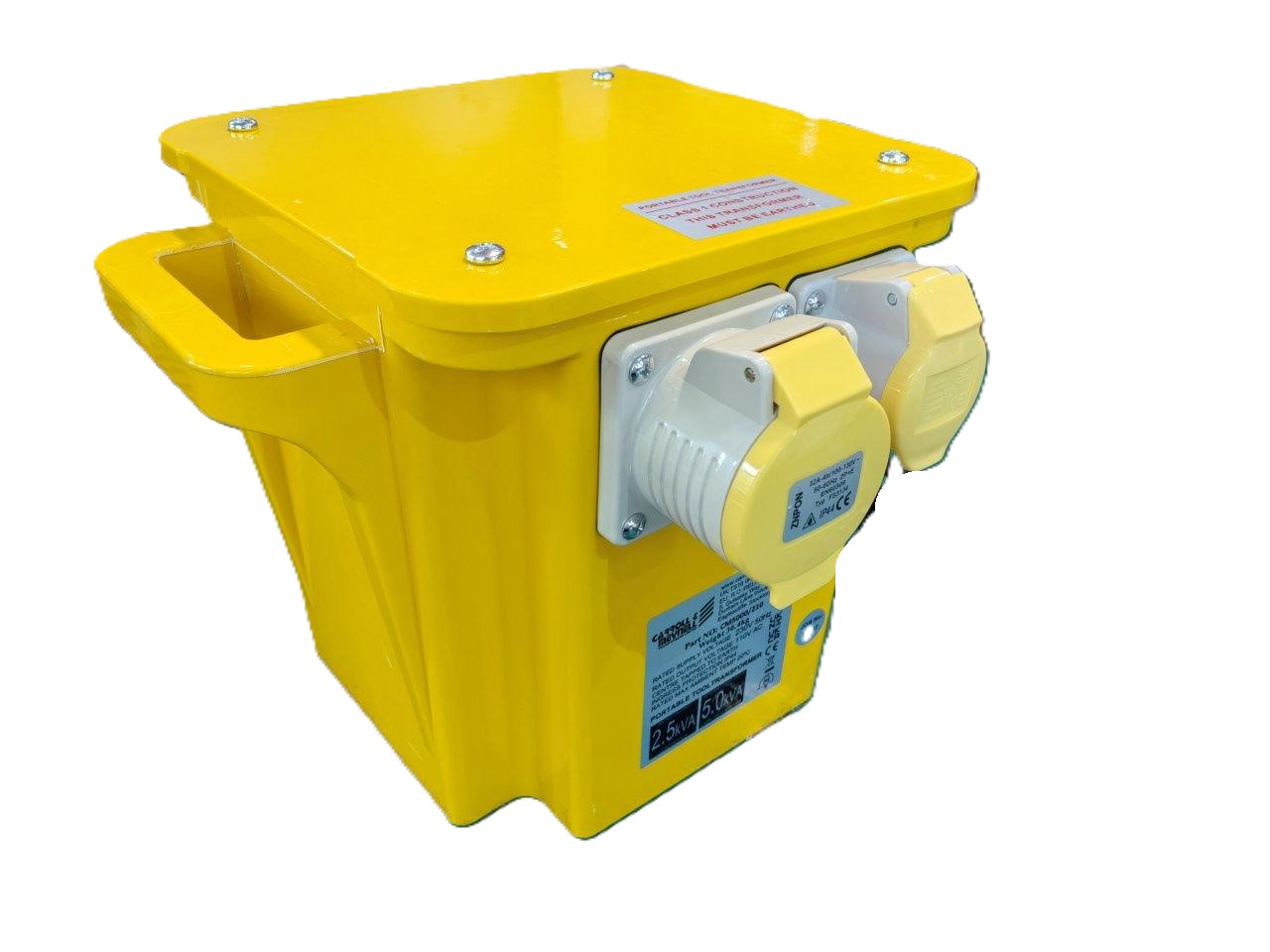

Portable Tool Transformer - CM5000/210 - Image 2

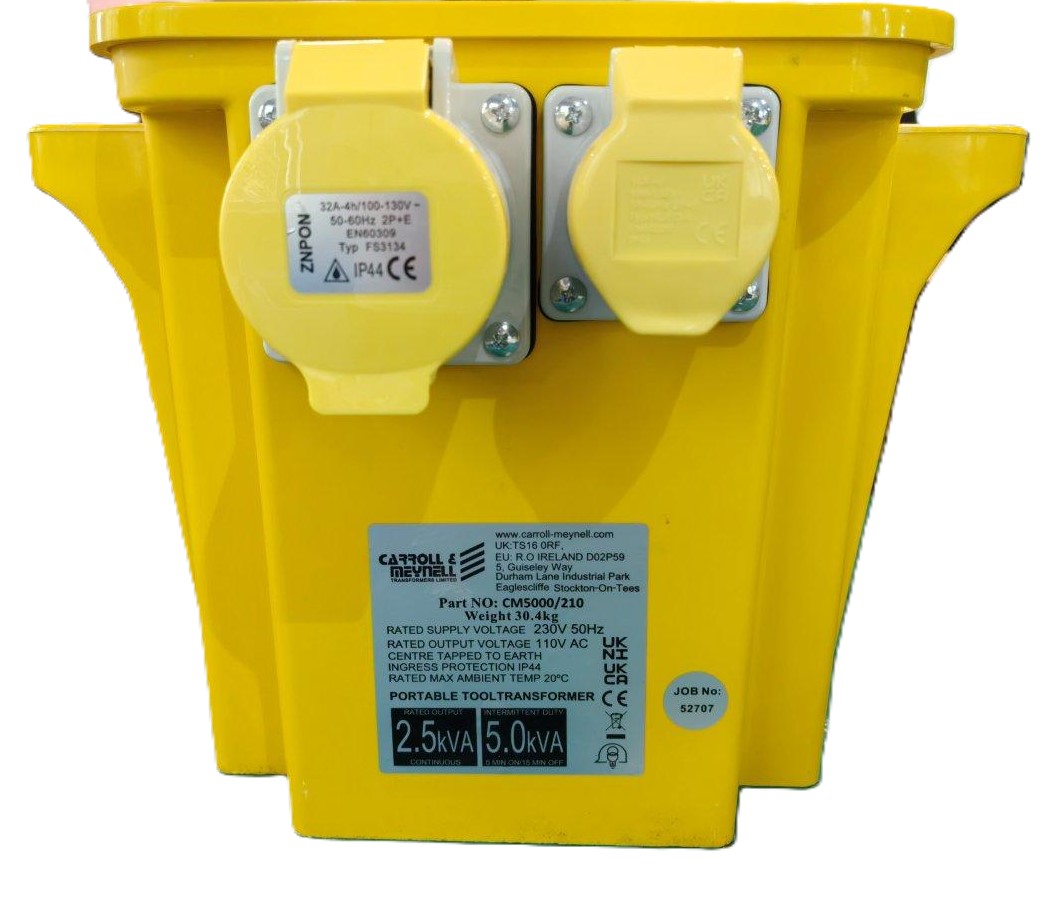

Portable Tool Transformer - CM5000/210 - Image 3

Portable Tool Transformer – CM5000/210

This portable tool transformer is used for converting 230V to 110V CTE.
Intermittent tool rating 5.0kVA.
2 x 16A, 1 x 32A Sockets

Input mains lead with bare ends (no plug), for hardwiring or a connector of choice (max current 23A):

1) If using the transformer up to its 2.5kVA continuous rating, supply current needed is 12A, therefore fitting a 13A UK domestic plug is permissible; alternatively, a 16A (230V) industrial plug.

2) If using the transformer up to its max 5.0kVA intermittent rating, supply current needed is 23A, which far exceeds 13A mains output – recommend 32A (230V) industrial plug (or other suitably rated plug); alternatively hard wire direct to a suitable fused spur electrical point.

Categories: ,

Description

  • Manufactured to BSEN 61558
  • Thermal overload protection
  • Glass reinforced polyester (GRP) case providing ingress protection to IP44
  • Output sockets to BSEN 60309 / IEC 60309 (Previously BS4343)
  • 2 metre input mains lead with bare ends, for hardwiring or connector of choice (max current 23A)
    i)  If using the transformer up to it’s 2.5kVA continuous rating, supply current needed is 12A. Therefore fitting a 13A UK domestic plug is permissible, alternatively 16A industrial plug.
    ii)  If using the transformer up to it’s 5.0kVA intermittent rating, supply current needed is 23A. Recommend 32A size industrial plug (or other suitably rated plug), alternatively hard-wire direct to a fused spur electrical point.

Additional information

Weight (kg)

32
Height (mm)

280
Depth (mm)

355
Width (mm)

315
Intermittent Tool Rating

5.0kVA
Continuous Rating

2.5kVA
Input Voltage

230V
Output Voltages

110V Centre tap earthed (55V-0-55V)
Output Sockets

2 No. 16A, 1 No. 32A Industrial

Safety Instruction Sheet

Download

Technical Data Sheet

Download
